TSU-1100

$132.95

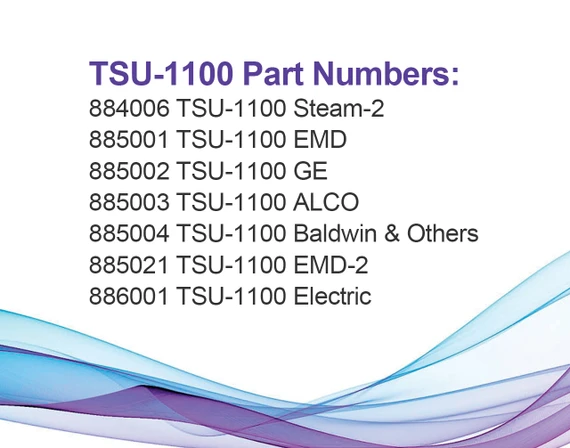

P.N.
Select an option to view the product number.
Share
Tsunami2 Owner's Manual

The TSU-1100 is one of our smallest sound decoders, yet is packed with a plethora of high-performance features! You will feel like you are in the cab with the amazing new features that Tsunami2 has to offer including: Reactive Dynamic Digital Exhaust, Functioning locomotive and train brakes, injectors, power reverse, and firebox flicker. We also offer a large selection of selectable sound effects including: exhaust chuffs(10), prime movers (up to 12), bells (12), Whistles (90), airhorns (40+), couplers, dynamos and more!

This micro 1-amp, universal-style format is ideal for small models with minimal space. It includes an optional capacitor or can be wired to a CurrentKeeper (P.N. 810140) to maintain performance over dirty track and switches.

Product Specifications

Dimensions: 27 x 10.5 x 5mm
Max. Motor Stall Current: 1A
Max. Function Current: 100mA (each output)
Function Outputs: 4
Audio Amplifier: 1 Watt, 8-Ohm Load
DCC Track Voltage: 7.5V – 22V
Sound Channels: 16

Compatible Speakers

20mm Round Speaker

15mm Round Speaker

30mm Round Speaker

28mm (1") Round Speaker

40 x 28.5mm Oval Speaker

40 x 20mm Oval Speaker

25 x 14mm Oval Speaker

35 x 16mm Oval Speaker

35 x 20mm Oval Speaker

15 x 12 x 11.5mm Mini Cube Speaker

13 x 9 x 8.5mm Mini Cube2 Speaker

Note: When wiring multiple Mini Cube 2 speakers, use parallel format to decrease impedance and increase overall volume.

Mega Bass Speakers

Sound Samples

Steam Sound Sample

Steam Exhaust Chuffs:

Steam Whistles:

Diesel Sound Samples

Tsunami2 Diesel Prime Movers:

Tsunami2 Diesel Digital Sound Decoders come in multiple part numbers that have locomotive manufacturer specific sound selections (EMD, ALCO, etc.). This playlist contains all of our available diesel prime movers. These prime movers are divided among several different Tsunami2 part numbers. To make sure the sound file you want is on the decoder you choose check our Sound Selection Reference in the Product Documentation section above.

Tsunami2 Diesel Airhorns:

The airhorns on this playlist are available in all Tsunami2 Diesel Digital Sound Decoders.

Electric Sound Samples

SoundTraxx 90-Day 'Safety Net' Warranty

Each SoundTraxx Digital Sound Decoder is tested thoroughly before it is shipped and warranted to be in good working order and free of manufacturing defects. However, in the event that a mistake does occur during installation within the first 90 days, SoundTraxx will cover the repair under our ‘Safety-Net’ Service Warranty.

If during the first ninety (90) days you damage your Digital Sound Decoder or it fails to operate, SoundTraxx will repair or replace the system free of charge if:

  • The original sales receipt showing purchase from an authorized SoundTraxx dealer accompanies the decoder. Receipt must show purchase date to be within the last 90 days. Your original receipt will be returned with your repaired unit.
  • There is no damage resulting from unauthorized repairs or modifications. This includes but is not limited to:
    - Removing the shrink tubing from the decoder
    - Drilling or enlarging circuit board holes
    - Cutting or trimming the circuit board
  • The Digital Sound Decoder is returned properly packaged, postage paid, and insured - SoundTraxx is not responsible for product lost or damaged in transit.
  • Recommended Shipping Package

    Packaged in a protective box and insured. Reminder: sometimes markers will 'bleed' in the rain - put a piece of clear tape over the address to protect it!

    Exclusions

    Onboard locomotive speakers are not covered by this warranty. SoundTraxx will not warranty nor repair any product returned in an envelope which does not provide proper protection during transit (e.g. No. 10 envelope). This warranty does not cover damage resulting from accidents, fire, floods, or other acts of God.
